WST-1450H High speed automatic corrugated paper cardboard sheet flute Laminating Machine with Flip Flop

Short Description:

Auto Pile Turner and Stacker Machine is the special accessory products for sheet to sheet laminating machines and can be connected with any of manufacturer’s laminating machine.

Send email to us

Product Detail

Product Tags

Company Introduction

Wenzhou Weston Print and Pack Machinery CO., LTD is a professional manufacturer for post-press equipment, mainly produce flute laminating machine, folder gluer and bopp film laminating machine, etc. WESTON Machinery with the development for more than 20 years, we become a high-tech enterprise. Our products have got CE certificate. We supply qualified equipment, effective and convenient solutions for cardboard box and corrugated box folding industry. We will be continuously providing higher quality and satisfying services in return for the support and favors of our customers.

comp

Description

This machine adopts the motion control system and servo correction device perfect combination, the use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper. Servo laminating machine is simple for operation, just enter the paper size, machine can automatically finish adjustment.
Servo Control Compensation Positioning. Automatic adjust When Changing Size.

Processed Materials

1450h (10)

1450h (11)

Suitable For the Following Industries
1450h (9)

Specification

MODEL	WST-1450H	WST-1650H
Max Sheet	1450×1450mm	1650*1450mm
Min Sheet	400×400mm	400×400mm
Top Paper Thickness	180-500g	180-500g
Laminating Speed	150m/mins	150m/mins
Fitting Precision	±1.5mm	±1.5mm
Measurement	21.3×2.4×3.1M	21.3×2.6×3.1M
Machine Power	35KW	38KW
Bottom Paper Thickness	A.B.C.E.F Corrugated, four ply corrugated paper.paper.Paperboard.Grey paper）	A.B.C.E.F Corrugated, four ply corrugated paper.paper.Paperboard.Grey paper）
Weight	8500kgs	9000kgs

Detail Introduction

Top sheet feeding mechanism
Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.

Overlap delivery Bridge
Overlap delivery is for better delivery edge curled paper and work more smoothly. Rould beads side guiding anti scratch surface art paper. avoid stuck paper

Bottom paper feeding

Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller, Use servo motor control system, Suction motor adjustable suction power, to ensure corrugate and cardboard goes out smoothly and simple operation.

Pressure Regulation System
According to the paper thickness adjust side two roller, front side one wheel for adjust glue amount. Top paper and button paper width input in touch screen, machine will be automatic adjust.

Mainframe casting stucture
This is top version,4cm casting wallboard for smoothly work under high speed.

Transmission
Transmission with imported double teeth belt drive and dedicated tension device ensure the drive stable and low noisy.
Belt drive and eccentric wheel adjust pressure.

Pre-stacker
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of pre-stack paper frame, convenient and efficient.

Glue Roller
The special design of anirx anilox big roller, after narrowly grinding, guaranteed the glue coated evenly. Down roller be cleaned by water roller.

Non stop Function of gluing roller
Machine with this design will much improve work efficiency, worker no need wash gluing roller after short resting time.

Positioning System
Use multiple sets of photoelectric sensor at bottom paper relative position, control top paper on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.

Electrical System
Use man-machine interface and PLC combination, display all the information, such as parameter setting, operating speed, fault detection and warning, etc on the screen . That ensure the machine stability and efficiency.

AUTOMATIC PILE TURNER AND STACKING MACHINE

Paper Separating system

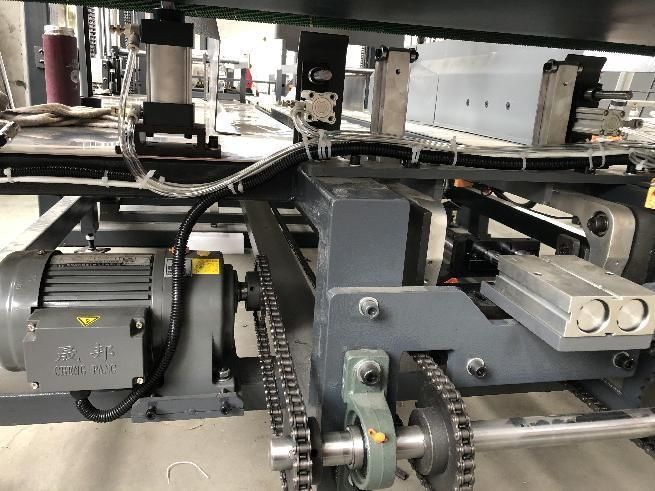

Driving wheel and laminating press belt joint to transmit power. Laminated paper be stacked down to down pallet by driving wheel and synchronous belt, when reach the specified number, separating rod lift and separate the paper.

Down Push System
Driven by the cylinder two pawl forward movement, push the set up quantity paper into a turnover device

Turning System
Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff, convenient for subsequent production line.

Up Push System
Using cylinder and lever principle, pushing the lifting paper into collecting system and waiting to be piled

Piling System

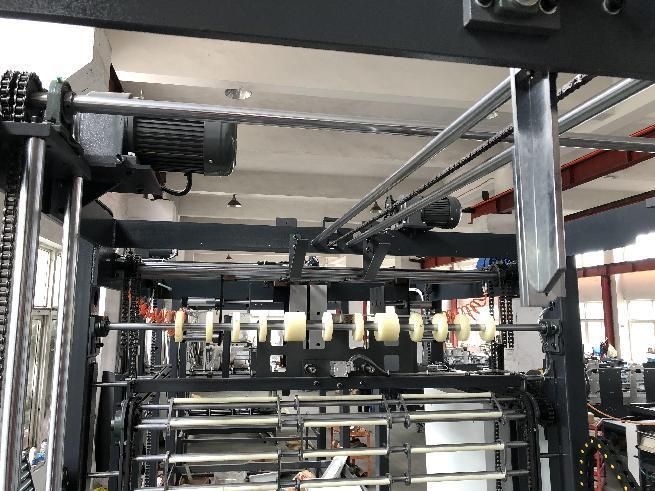

Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neat

Collecting System
When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper, at the same time the vice paper collecting table automatic work, complete non-stop collecting finished

Electronic Unit
All parts adopt well-known foreign brand, reasonable program design, working by one key to complete the operation, automatic fault detection.

Pneumatic Control System
The mechanical action work through pneumatic control to complete, all pneumatic components are imported famous brand.

Automatic pile turner and stacking machine

MODEL WST-1450S

Auto Pile Turner and Stacker Machine is the special accessory products for sheet to sheet laminating machines and can be connected with any of manufacturer’s laminating machine. This integrative equipment can auto make the laminated papers to piles according to specified number. With collecting, piling, intermittent turning and stacking functions, realize collected paper front and backside placed stacking, effectively prevent laminated paper curving and manpower-saving for labor collecting strength.

Features

Auto Collecting
Front and Back Placed Stacking
Collecting Orderly
One Key Operation
Fault Detection
Easy Connecting
Space Saving
Simple and easy to learn
Save time and effort

Configuration List

Part	Origin	Brand
Motion Controller	Shenzhen	Zmotion
AC Servo Driver	Japan	YASKAWAN
Servo Motor	Japan	YASKAWA
Frequency Converter	Japan	OMRON
PLC	France	Schneider
Main Motor	Taiwan	TECO
Synchronous Belt	USA	GATES
Bearing	Japan	NSK
Suction Belt	Japan	NITTA
Contactor	France	Schneider
Solenoid Valve	USA	MAC
Push Button	France	Schneider
Low Voltage	France	Schneider
Spring	Japan	DAIDO
