YFMB-540 Oil Heating high quality hydraulic pressure Semi auto thermal film paper laminating machine for Leaflets
Price
Specifications
| Model | YFMB-540 |
| Max Paper Size | 520mm |
| Paper Thickness | 100-500g/m2 |
| Laminating Speed | 0-25m/min |
| Power | 9kw |
| Total Weight | 700kg |
| Overall Dimensions | 3300x1150x1450mm |
| Heating roller diameter | 216mm |
| Packing Size | 1.8*1.45*1.5m (3.9CBM) |
Features of the machine
YFMB-540 series thermal laminator is the most advanced manual feeding laminating equipment. This machine is with the characters of high-automation, easy-operation, safety and stability. It can widely adopt in carton packaging, label making and digital printing product. It’s the good choice for large and medium sized printing house
Features By Part
a)High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications. Enlarged size of chromed heating roller is mounted with built in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.

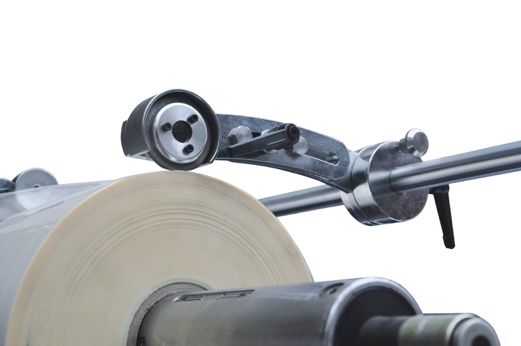

b)Pneumatic film unwinding system positions film.roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
c)Perfected traction adjusting system makes traction adjustment more convenient and efficient.
d)Corrugating delivery system ensure paper collection more regular. Anti-curling device: when paper going through anti-curl device, the laminated paper shall be leveled at once and wont curve again after cutting
e)Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
f)Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.
g)Air expansion shaft releases film, and positioning accuracy,also makes the loading and unloading of film roll more convenient.
Configuration
| NO. | Name | MODEL | QTY | REMARKS |
| 1 | PLC | 40MT | 1 | Inovance |
| 2 | touch screen | 6070T | 1 | WEILUN |
| 3 | Servo drive | IS5-9S2R8/400W | 1 | Inovance |
| 4 | frequency changer | 2.2KW | 1 | PNEUMATIC |
| frequency changer | 4KW | 1 | HYDRAULIC PREASURE | |
| 5 | miniature circuit breaker | DZ60-47/C32A | 1 | SCHNEIDER |
| 6 | miniature circuit breaker | DZ60-47/C10 | 2 | SCHNEIDER |
| 7 | alternating current contactor | 1210/220V | 6 | SCHNEIDER |
| 8 | alternating current contactor | 3210/220V | 1 | SCHNEIDER |
| 9 | intermediate relay | MY2N-J | 9 | OMRON |
| 10 | Solid state contactor | J25S25 | 2 | CHINA |
| 11 | Voltage heating module | 3PH60DA-H | 1 | WUXI |
| 12 | limit switch | YBLX-ME/8108 | 2 | SCHNEIDER |
| 13 | Pressure limit switch | ME-8111 | 1 | SCHNEIDER |
| 14 | Reflection type photoelectric switch | HE18-R2N/24V | 1 | OMRON |
| 15 | Square photoelectric switch type | E3Z | 1 | OMRON |
| 16 | photoelectric switch | DS30 | 1 | OMRON |
| 17 | proximity switch | BB-U202N/24V | 1 | OMRON |
| 18 | pilot lamp | XB2 | 1 | SCHNEIDER |
| 19 | Transfer switch | ZB2-BDZC | 4 | SCHNEIDER |
| 20 | stop switch | BS54C | 3 | SCHNEIDER |
| 21 | button switch | ZB2（Green、White、Red） | 2（Green）+1（white）+1（red） | SCHNEIDER |
| 22 | encoder | E6BZ-CW26C/1000R/24V | 1 | OMRON |
| 23 | Power Module | S-35-24 | 1 | TAIWANG |
| 24 | temperature-sensing wire | 1-model | 1 | OMRON |
| 25 | thermograph | MXTG-6501 | 1 | OMRON |
| 26 | Switch contact | Normal open：ZBS-BZ101 | 10 | OMRON |
